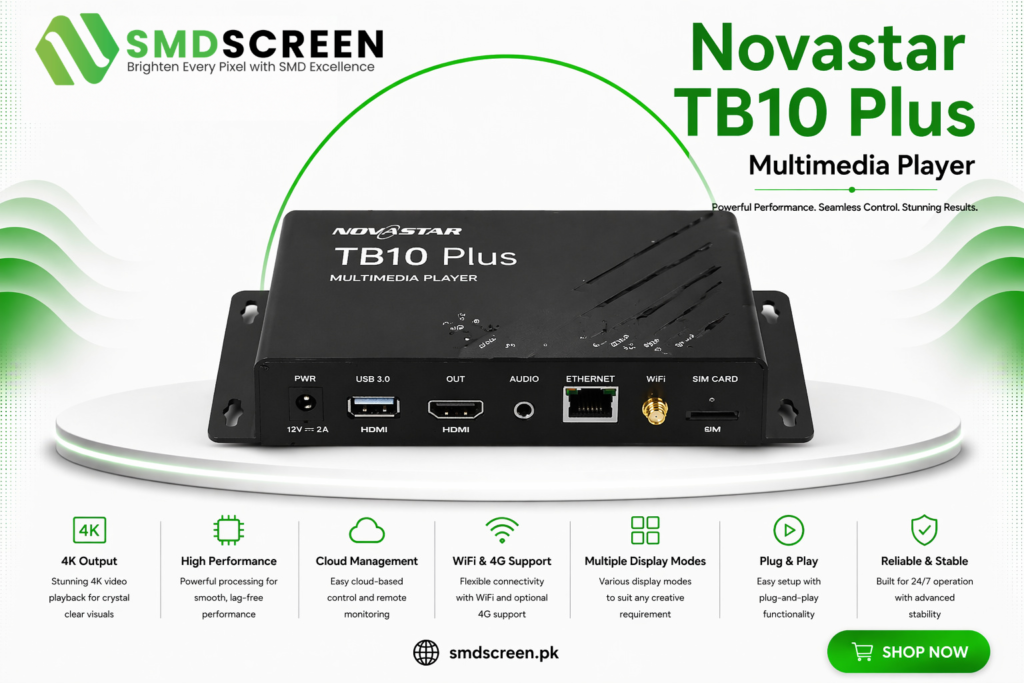

TB10 Plus Multimedia Player
The TB10 Plus is a compact and reliable multimedia player designed for small to medium-sized LED display applications. Supporting up to 650,000 pixels with 4K@60Hz video decoding, it delivers smooth playback and stable performance for digital signage, retail displays, restaurants, corporate environments, and advertising screens. Running on Android 10.0, the TB10 Plus offers cloud management, USB expansion, and synchronized playback for efficient content management.
Specifications
| Feature | Specification |
|---|---|
| Model | TB10 Plus |
| Max. Loading Capacity | 0.65 Million Pixels |
| Max. Width & Height | 2048 × 2048 (Normal), 8192 × 2048 (Ultra-wide) |
| CPU | Quad-core A53 @ 1.4GHz |
| RAM + ROM | 2GB + 32GB |
| Storage Expansion | USB Drive, Up to 128GB |
| Video Decoding | 4K @ 60Hz |
| Operating System | Android 10.0 |
| Playback | 1×4K, 2×1080P, 4×720P, 4×480P, 20×360P |
| Multi-device Sync Playback | Supported |
| Sync & Async Switching | Not Supported |
| HDMI Cascading | Not Supported |
| Sensor Access | Supported |
| Audio Output | Supported |
| USB Interface | USB 2.0 |
| Wired Network | 100 Mbps |
| Wi-Fi | 2.4GHz AP + STA Dual Mode |
| Optional 4G | Supported |
| VNNOX Care / VNNOX Media | Supported |
| NovaStar SDK | Supported |
Key Features
- Supports up to 650,000 pixels
- 4K@60Hz video decoding
- Android 10 operating system
- Multi-device synchronized playback
- USB storage expansion up to 128GB
- Cloud content management
- Ideal for commercial digital signage
