GOB P1.86 Indoor LED Display

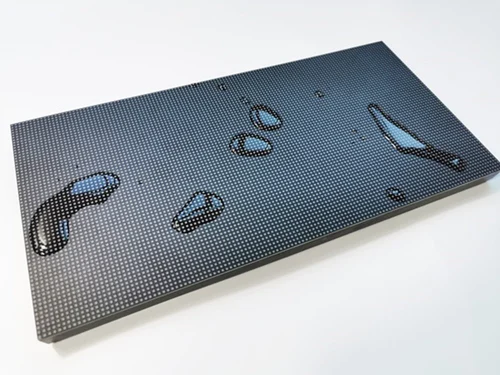

GOB P1.86 Indoor LED Display is a high-definition fine-pitch LED video wall designed for conference rooms, control centers, boardrooms, studios, auditoriums, and premium digital signage applications. Using advanced GOB (Glue-On-Board) technology, the LED surface is protected by a transparent coating that enhances resistance against dust, moisture, static electricity, and accidental impact while maintaining excellent image quality and color accuracy.
With a 1.86mm pixel pitch, the display delivers sharp visuals, seamless images, and vibrant colors for close-viewing environments. The GOB protection layer significantly improves durability and reduces maintenance requirements compared to conventional indoor LED displays.
Key Features
- Advanced GOB (Glue-On-Board) Protection Technology
- Fine Pixel Pitch 1.86mm
- High Definition Display Quality
- Dust-Proof and Moisture-Resistant Surface
- Anti-Collision and Anti-Static Protection
- High Refresh Rate ≥3840Hz
- Wide Viewing Angle
- Seamless Video Wall Installation
- Front Maintenance Access
- Energy-Efficient Performance
- Long Lifespan of 100,000+ Hours
- Reliable 24/7 Continuous Operation
Technical Specifications
| Specification | Details |
|---|---|
| Pixel Pitch | 1.86mm |
| LED Technology | GOB (Glue-On-Board) |
| Pixel Density | 289,444 Pixels/m² |

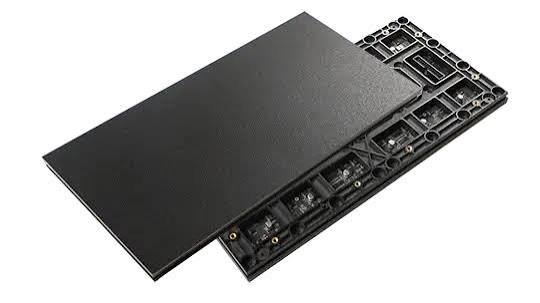

| Module Size | 320 × 160 mm |
| Module Resolution | 172 × 86 Pixels |
| Brightness | 550–800 Nits |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | 160° H / 160° V |
| Gray Scale | 16 Bit |
| Cabinet Material | Die-Cast Aluminum |
| Maintenance | Front Service |
| Average Power Consumption | 120–180W/m² |
| Maximum Power Consumption | Up to 500W/m² |
| Input Voltage | AC 110V–240V |
| Lifespan | ≥100,000 Hours |
| Recommended Viewing Distance | 2m and Above |
Specifications compiled from commonly listed P1.86 GOB indoor modules and cabinets.
Applications
- Conference Rooms
- Corporate Boardrooms
- Control & Command Centers
- TV Broadcast Studios
- Monitoring Rooms
- Auditoriums
- Universities
- Exhibition Halls
- Retail Stores
- Indoor Advertising Displays
