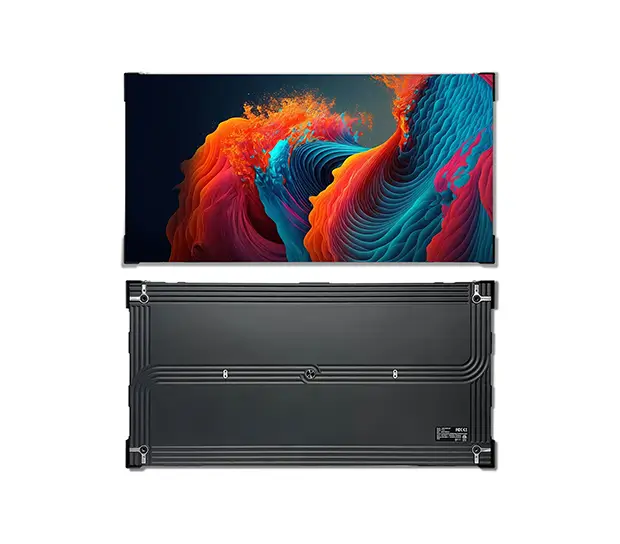

COB P1.5 (Flip-Chip) Indoor LED Display
COB P1.5 (Flip-Chip) Indoor LED Display is a high-performance fine-pitch LED video wall designed for conference rooms, control centers, studios, showrooms, and premium indoor digital signage applications. Using advanced Flip-Chip COB (Chip-on-Board) technology, the LED chips are directly mounted onto the PCB, providing superior heat dissipation, higher reliability, improved protection, and lower power consumption compared to traditional SMD displays.
With a pixel pitch of 1.56mm, the display delivers sharp images, vibrant colors, deep black levels, and seamless visual performance for close-viewing environments. The protective COB surface makes the screen resistant to dust, moisture, static electricity, and accidental impacts, ensuring long-term stability and reduced maintenance costs.
Key Features
- Advanced Flip-Chip COB technology
- Ultra-fine 1.5mm pixel pitch
- High contrast and deep black display surface
- Energy-efficient common cathode design
- Superior heat dissipation
- Anti-collision and anti-static protection
- Front maintenance access
- Seamless cabinet splicing
- 3840Hz high refresh rate
- Wide viewing angles
- Long lifespan exceeding 100,000 hours
- Suitable for 24/7 operation environments
Technical Specifications
| Specification | Details |
|---|---|
| Pixel Pitch | 1.56mm |
| LED Technology | Flip-Chip COB |
| Pixel Density | 409,600 Pixels/m² |
| Brightness | 600–800 Nits |
| Refresh Rate | ≥3840Hz |
| Contrast Ratio | Up to 10,000:1 |
| Viewing Angle | 160° H / 160° V |
| Cabinet Size | 600 × 337.5 mm |
| Cabinet Material | Die-Cast Aluminum |
| Cabinet Weight | Approximately 4kg |
| Maintenance | Front Service |
| Average Power Consumption | 120W/m² |
| Maximum Power Consumption | 350W/m² |
| Input Voltage | AC 110–240V |
| Lifespan | ≥100,000 Hours |
Applications
- Conference Rooms
- Corporate Boardrooms
- Control & Command Centers
- TV Studios
- Monitoring Rooms
- Exhibition Halls
- Luxury Retail Stores
- Universities & Auditoriums
- Indoor Digital Signage
