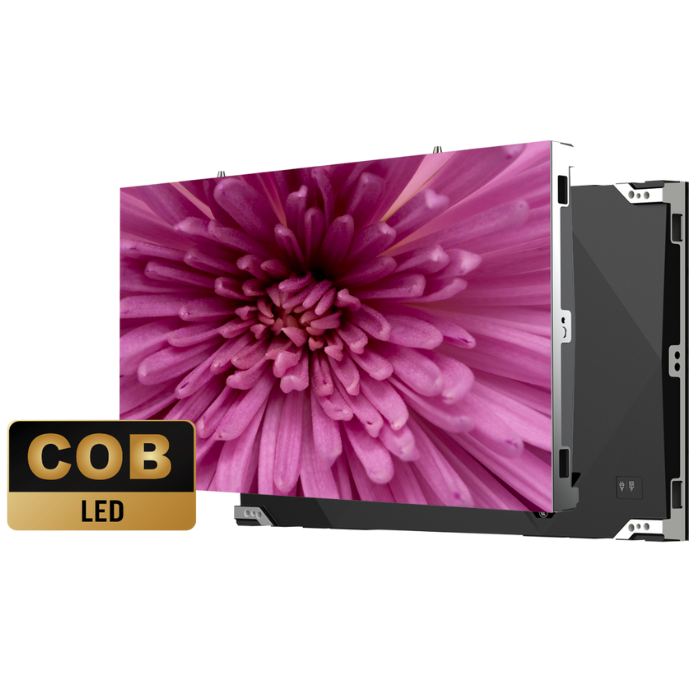

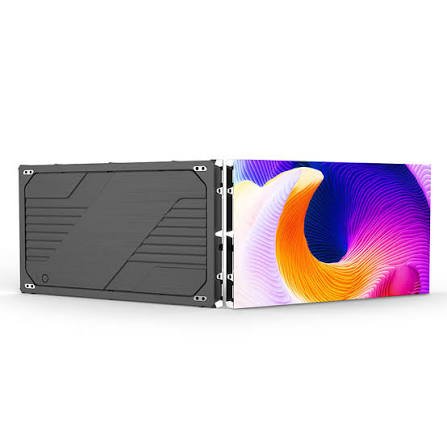

COB P1.8 (Flip-Chip) Indoor LED Display
COB P1.8 (Flip-Chip) Indoor LED Display is a premium fine-pitch LED video wall solution designed for conference rooms, control centers, boardrooms, studios, auditoriums, and high-end digital signage applications. Utilizing advanced Flip-Chip COB (Chip-on-Board) technology, the display offers exceptional image quality, superior protection, enhanced heat dissipation, and lower power consumption compared to traditional SMD LED displays.
With a 1.8mm pixel pitch, this LED screen delivers sharp visuals, vibrant colors, high contrast, and seamless performance for medium and close viewing distances. The COB protective layer safeguards the LED surface against dust, moisture, static electricity, and accidental impacts, ensuring long-term reliability and reduced maintenance costs.
Key Features
- Advanced Flip-Chip COB Technology
- Fine Pixel Pitch 1.8mm
- High Contrast Ratio and Deep Black Display
- Excellent Heat Dissipation
- Energy-Efficient Design
- 3840Hz High Refresh Rate
- Wide Viewing Angle

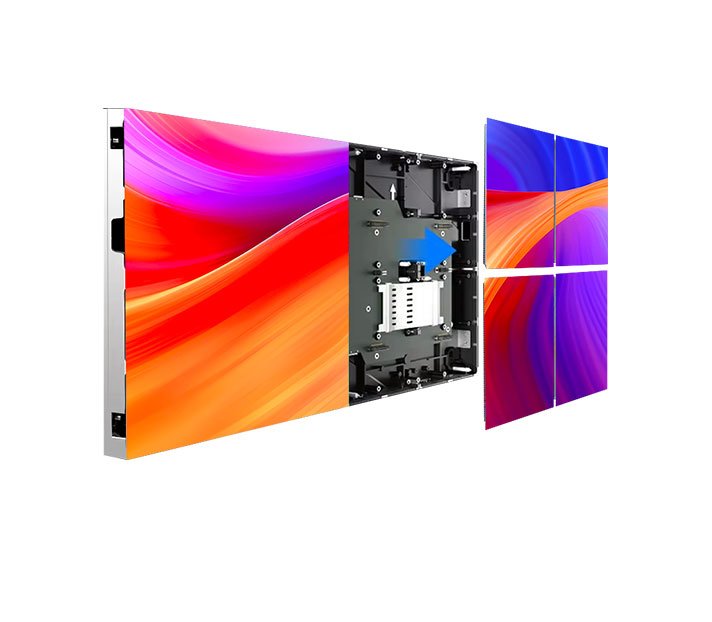

- Front Maintenance Access
- Seamless Video Wall Installation
- Anti-Collision Surface Protection
- Dust and Moisture Resistance
- Long Lifespan of 100,000+ Hours
- Stable 24/7 Operation
Technical Specifications
| Specification | Details |
|---|---|
| Pixel Pitch | 1.86mm |
| LED Technology | Flip-Chip COB |
| Application | Indoor |
| Pixel Density | 289,444 Pixels/m² |
| Brightness | 600–800 Nits |
| Refresh Rate | ≥3840Hz |
| Contrast Ratio | Up to 10,000:1 |
| Viewing Angle | 160° H / 160° V |
| Gray Scale | 16 Bit |
| Cabinet Material | Die-Cast Aluminum |
| Maintenance | Front Service |
| Average Power Consumption | 120–180W/m² |
| Maximum Power Consumption | ≤500W/m² |
| Input Voltage | AC 110V–240V |
| Lifespan | ≥100,000 Hours |
Applications
- Corporate Boardrooms
- Conference Rooms
- Command & Control Centers
- TV Broadcast Studios
- Security Monitoring Rooms
- Auditoriums
- Universities
- Exhibition Halls
- Retail Stores
- Indoor Advertising Displays
