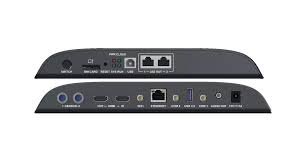

NovaStar TB40 Multimedia Controller
The NovaStar TB40 Multimedia Controller is a professional all-in-one LED display controller that combines multimedia playback and LED sending functions in a single device. Designed for commercial digital signage and smart LED display applications, it supports up to 1.3 million pixels, 4K video decoding, synchronized playback, cloud management, and remote content publishing. With Gigabit Ethernet ports, Android 11 operating system, and support for synchronous and asynchronous playback, the TB40 is an ideal solution for retail stores, shopping malls, transportation hubs, corporate displays, and outdoor advertising screens.
Specifications
| Feature | Specification |
|---|---|
| Model | TB40 |
| Max. Loading Capacity | 1.3 Million Pixels |
| Max. Width / Height | 4096 × 4096 Pixels |
| CPU | Quad-core A55 @ 1.8GHz |
| Operating System | Android 11 |
| RAM + ROM | 1GB + 32GB |
| Storage Expansion | USB Drive, Up to 128GB |
| Video Decoding | 4K @ 60Hz |
| Ethernet Output | 2 × Gigabit Ethernet Ports |
| HDMI Input | 1 × HDMI |
| HDMI Output | 1 × HDMI |
| Audio Output | Stereo Audio |
| USB Ports | USB 3.0 & USB Type-B |
| Playback Mode | Synchronous & Asynchronous |
| Cloud Management | Supported |
| Multi-screen Synchronization | Supported |
| Network | Gigabit Ethernet, Wi-Fi, Optional 4G |
| Applications | Indoor & Outdoor LED Displays |
Key Features
- Supports up to 1.3 million pixels
- 4K@60Hz hardware video decoding
- Android 11 operating system
- Dual Gigabit Ethernet output
- Synchronous & asynchronous playback
- Remote cloud management
- Multi-screen synchronization
- Ideal for digital signage and commercial LED displays
