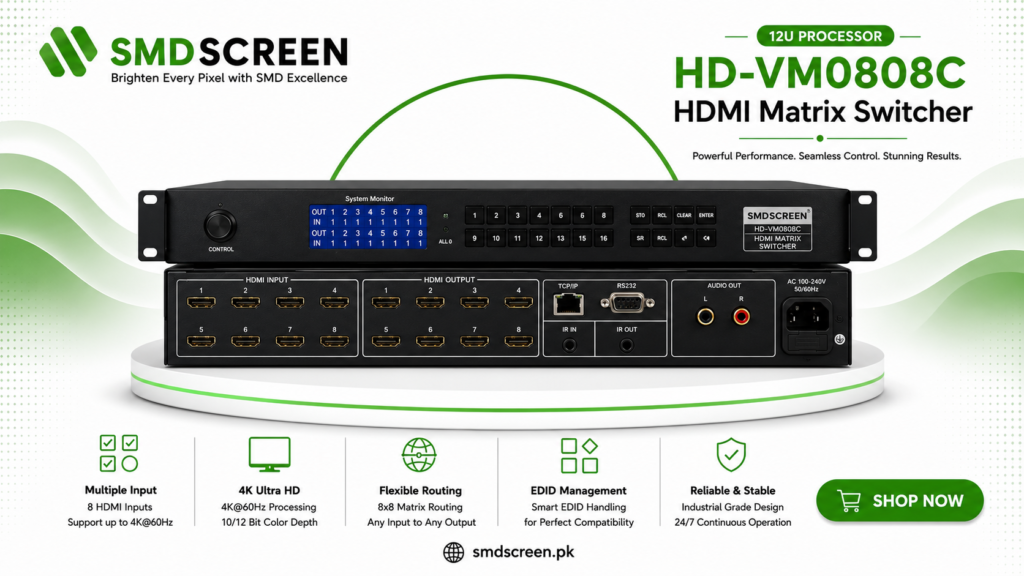

HD-VM0808C HDMI Matrix Switcher
The HD-VM0808C is a compact 8×8 HDMI matrix switcher designed for flexible AV signal routing. It supports independent switching of 8 HDMI inputs to 8 HDMI outputs with stable performance and low latency, making it ideal for conference rooms, digital signage, and small to medium AV systems.
Specifications
| Feature | Specification |
| Model | HD-VM0808C |
| HDMI Input | 8 × HDMI |
| HDMI Output | 8 × HDMI |
| Chassis Height | 1U |
| Signal Delay | 5ns (±1ns) |
| Control Method | Keypad / Serial / IR |
| Max Resolution | 1920 × 1080 @ 60Hz |
| Power Supply | External, AC 180–240V, DC 12V/2A |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5% – 75% |
Key Features
- 8×8 HDMI matrix switching
- Low-latency signal processing
- Full HD 1080p support
- Easy control via keypad or serial
- Compact 1U design
- Stable and reliable AV performance
