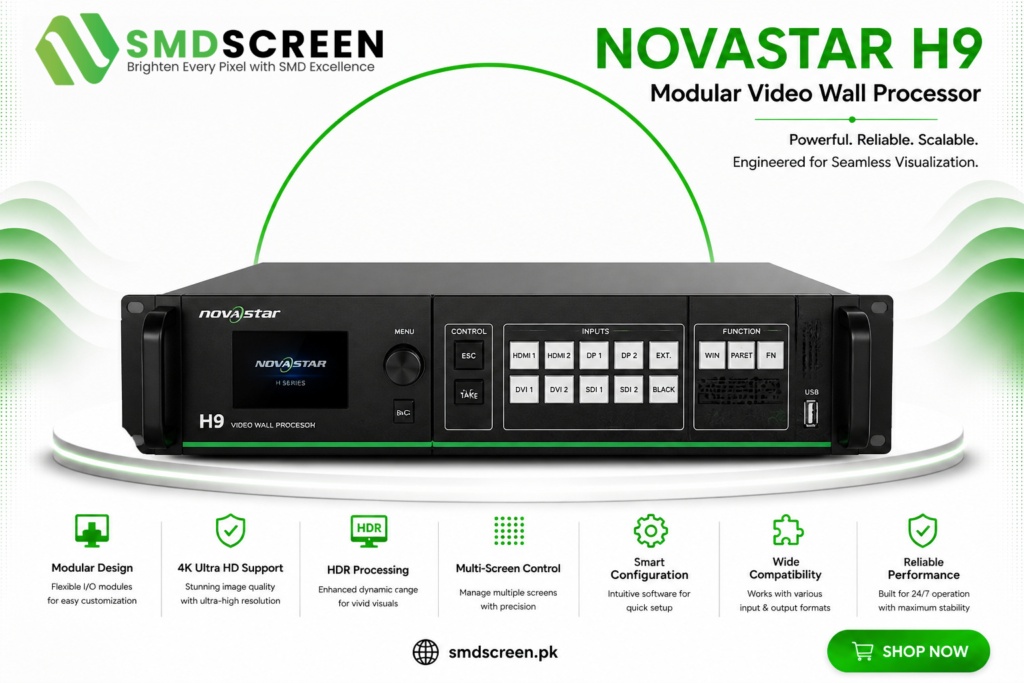

H9 Modular Video Wall Processor
The H9 Modular Video Wall Processor is an advanced video wall controller engineered for large-scale LED display systems. With support for up to 65 million pixels via RJ45 sending cards and 130 million pixels using enhanced fiber output cards, the H9 delivers exceptional image quality, seamless multi-layer processing, and flexible modular expansion. It is ideal for command centers, broadcast studios, exhibition halls, and premium commercial LED display applications.
Specifications
| Feature | Specification |
|---|---|
| Model | H9 |
| Rack Unit | 9U |
| Max Loading Capacity (RJ45) | 65 Million Pixels |
| Max Loading Capacity (Fiber Enhanced) | 130 Million Pixels (H9 Enhanced: 260 Million Pixels) |
| Max Input Cards | 15 |
| Max Output Cards | 5 (H9), 10 (H9 Enhanced) |
| Maximum Output Resolution | 2560×2560 (Video Connector), 10752×10752 (RJ45), 16384×16384 (OPT) |
| Max Layers | 80 (H9), 160 (H9 Enhanced) |
| Preset Scenes | 2000 |
| Irregular Mosaic | Supported |
| 10-bit & HDR | Supported |
| Input/Output Monitoring | Supported (Preview Card Required) |
| Optional Power Supply | Supported |
| Permission Management | Supported |
| Central Control | TCP/IP, RS232 |
| OSD | Supported |
| Background (BKG) | Supported |
| Touch Panel Control | Supported |
Key Features
- Up to 260 million pixel support (Enhanced)
- Modular architecture
- Up to 160 display layers
- 2000 preset scenes
- HDR & 10-bit processing
- Professional LED video wall management
