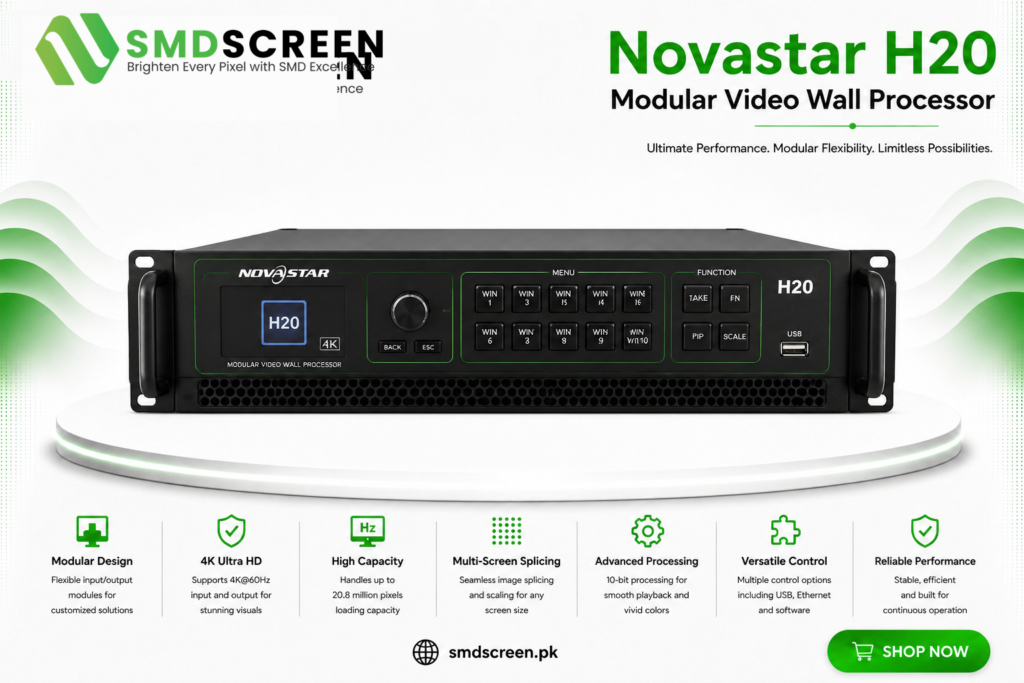

H20 Modular Video Wall Processor
The H20 Modular Video Wall Processor is the highest-performance model in the H Series, designed for ultra-large LED video walls and enterprise visualization systems. Supporting up to 260 million pixels through RJ45 sending cards and an incredible 520 million pixels using enhanced optical fiber output cards, it delivers unmatched processing power, scalability, and reliability for the world’s most demanding LED display projects.
Specifications
| Feature | Specification |
| Model | H20 |
| Rack Unit | 20U |
| Max Loading Capacity (RJ45) | 260 Million Pixels |
| Max Loading Capacity (Fiber Enhanced) | 520 Million Pixels |
| Max Input Cards | 40 |
| Max Output Cards | 20 |
| Maximum Output Resolution | 2560×2560 (Video Connector), 10752×10752 (RJ45), 16384×16384 (OPT) |
| Max Layers | 320 |
| Preset Scenes | 2000 |
| Irregular Mosaic | Supported |
| 10-bit & HDR | Supported |
| Input/Output Monitoring | Supported |
| Optional Power Supply | Supported |
| Permission Management | Supported |
| Central Control | TCP/IP, RS232 |
| OSD | Supported |
| Background (BKG) | Supported |
| Touch Panel Control | Supported |
Key Features
- Up to 520 million pixels
- 320 simultaneous display layers
- Supports 40 input & 20 output cards
- 2000 preset scene memories
- HDR & 10-bit image processing
- Professional modular video wall solution
- Designed for command centers, stadiums, broadcasting, and mega LED display projects
