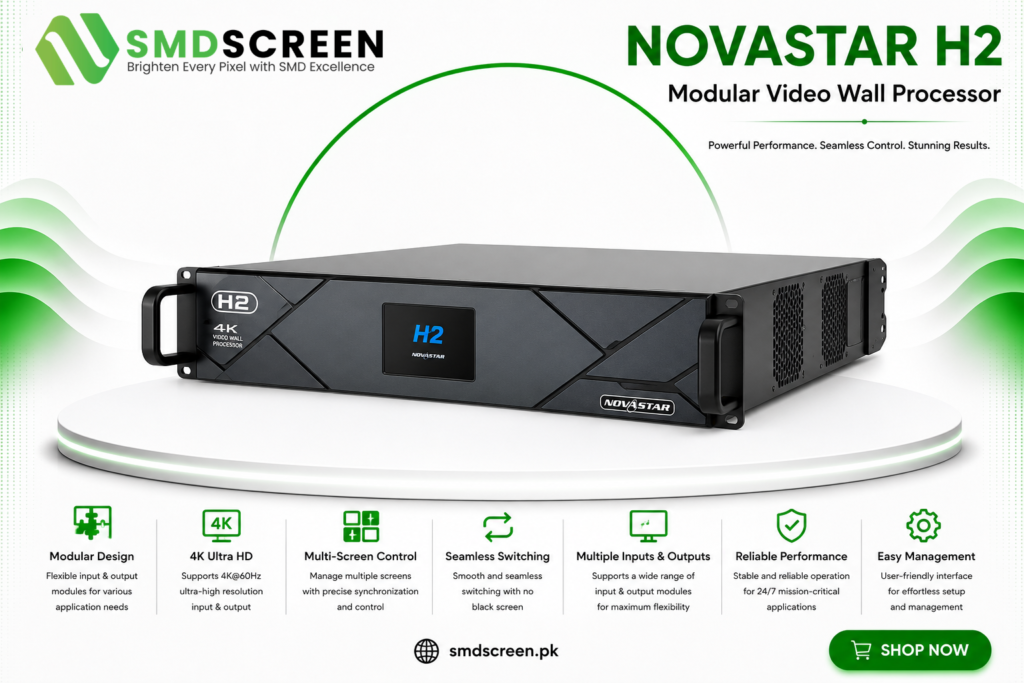

H2 Modular Video Wall Processor
The H2 Modular Video Wall Processor is a compact yet powerful LED video wall controller designed for professional display applications. With support for up to 26 million pixels via RJ45 sending cards and 52 million pixels via enhanced optical output cards, it delivers outstanding image quality, flexible signal management, and reliable operation. Featuring a modular architecture, HDR support, multi-layer display, and extensive input/output card compatibility, the H2 is ideal for conference rooms, command centers, digital signage, and commercial LED display systems.
Specifications
| Feature | Specification |
|---|---|
| Model | H2 |
| Rack Unit | 2U |
| Max Loading Capacity (RJ45) | 26 Million Pixels |
| Max Loading Capacity (Fiber Enhanced) | 52 Million Pixels |
| Max Input Cards | 4 |
| Max Output Cards | 2 |
| Max Output Resolution | 2560×2560 (Video Connector), 10752×10752 (RJ45), 16384×16384 (OPT) |
| Max Layers | 32 |
| Preset Scenes | 2000 |
| Irregular Mosaic | Supported |
| 10-bit & HDR | Supported |
| Input/Output Monitoring | Supported (Preview Card Required) |
| Permission Management | Supported |
| Central Control | TCP/IP, RS232 |
| OSD | Supported |
| Background (BKG) | Supported |
Key Features
- Supports up to 52 million pixels
- Modular input and output architecture
- 32 independent display layers
- 2000 preset scene memories
- 10-bit HDR image processing
- Irregular LED display mapping
- TCP/IP & RS232 control
- Professional video wall processing
